Product overview

Projected Capacitive (PCAP) Touch Screen Foils & Films

Our touch film series covers various display sizes and integration scenarios, providing flexible solutions for retail, smart home, commercial, and industrial applications.

Different Display SizesTransparent Touch FilmPCAP Touch TechnologyFlexible Integration Options

Large format transparent touch film integrated with controller module on a commercial display wall.

01 Capacitive Touch Panel Series Sizes from 10" to 65" with 10–20 touch points, G+G or G+F structure, ≥6H surface hardness, >85% light transmittance, USB/RS232/I²C interface, and operating temperature from -20°C to 70°C. Smart Glass & Interactive WindowsDigital Signage & Retail DisplaysOutdoor & Rugged Touch Displays Industrial-grade projected capacitive (PCAP) touch panels from 10" to 65", built on G+G structure (tempered cover glass + ITO sensor glass + SCA + FPC). Designed for equipment manufacturers and system integrators who need durable, high-clarity, multi-touch front panels for HMI, medical, retail, self-service, transport and commercial display. Full OEM/ODM customization with controller, firmware and software support.

Ultra-thin nano touch foil with fine conductive grid applied to a transparent glass surface.

02 Nano Touch Foil Features 10 or above touch points, ≥90% light transmission, 0.17–0.2mm thickness, USB HID, nano-wire matrix, and optional AG/AR/AF coatings for premium interactive experiences. Smart Glass & Interactive WindowsDigital Signage & Retail Displays Nano Touch Foil offers an ultra-thin, invisible nano-wire sensor layer for 15”–120” surfaces, delivering high-clarity, seamless touch integration behind glass or acrylic.

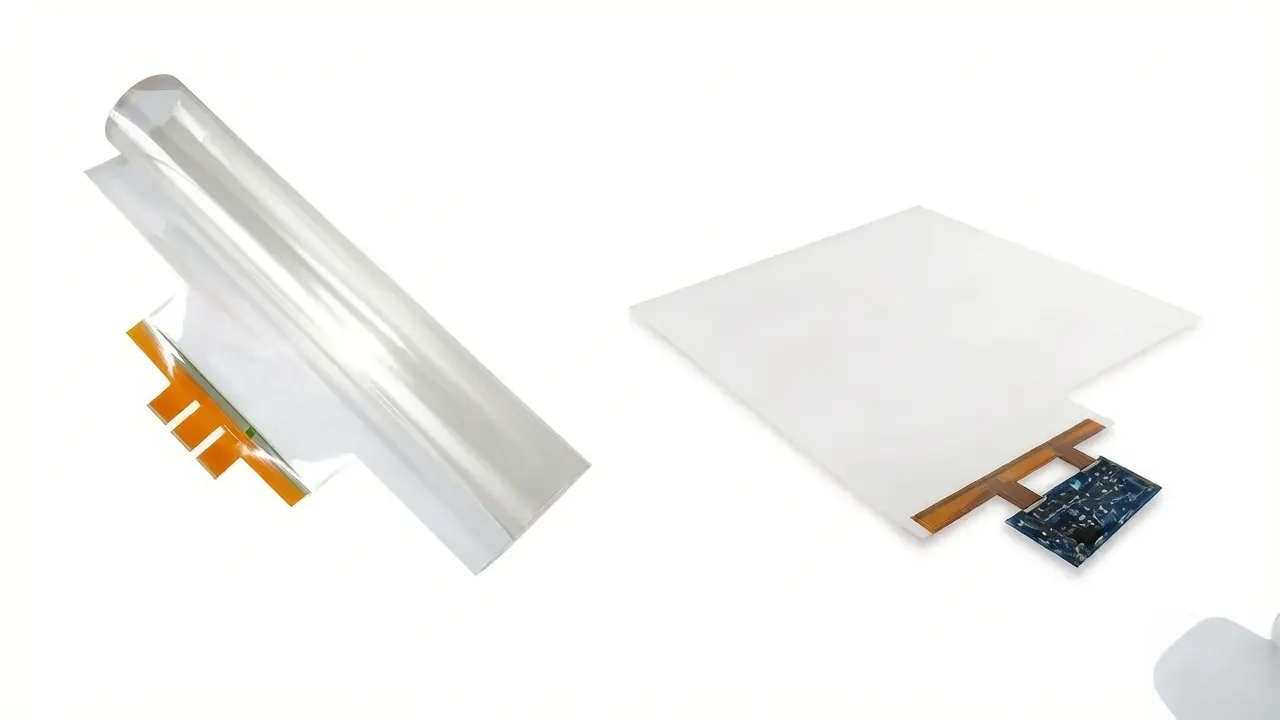

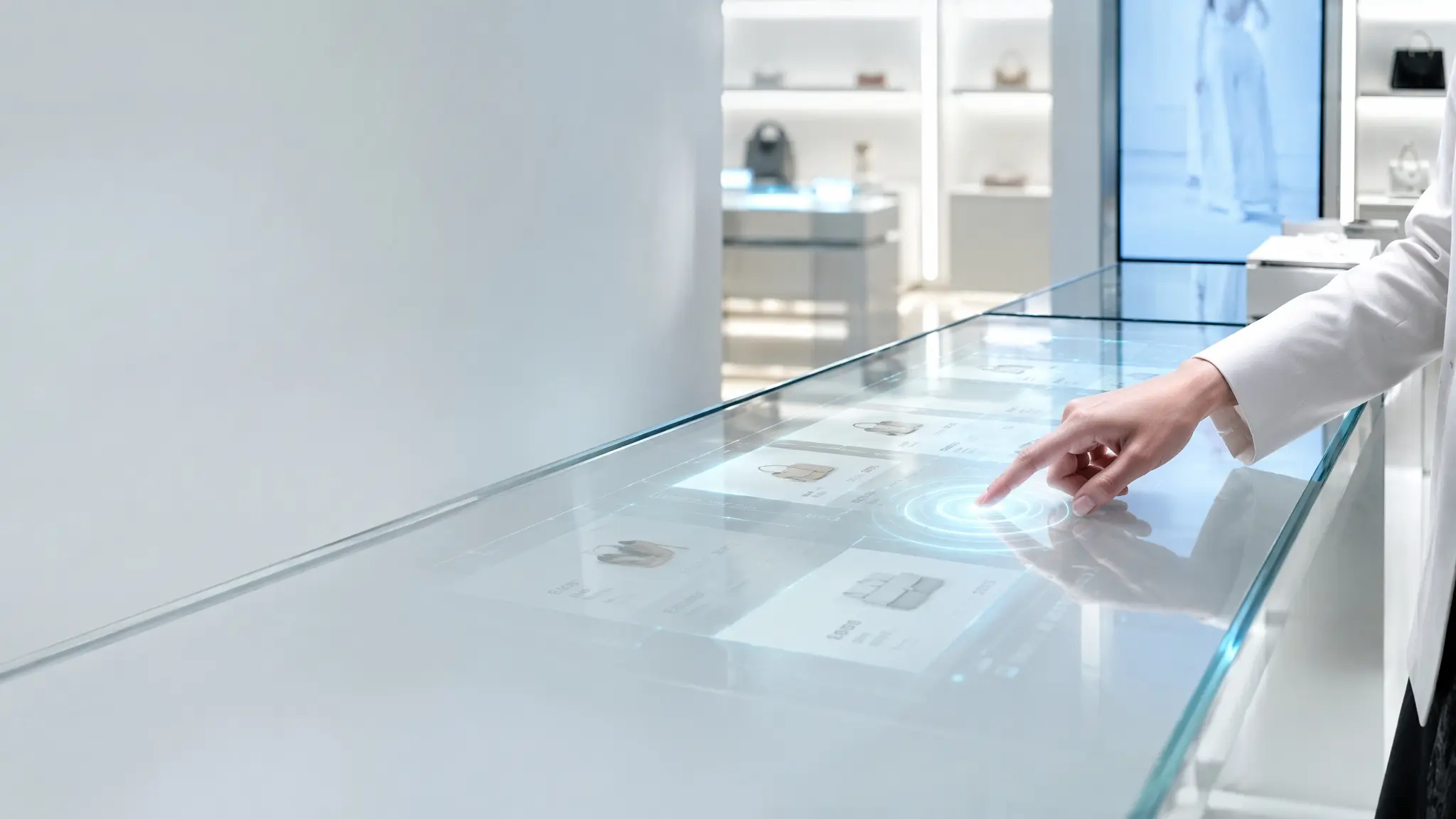

Transparent standard PCAP touch film shown as a thin, frameless interactive surface for display and glass integration.

03 Standard PCAP Touch Film Supports 10 or above touch points with ≥90% light transmission, 0.2mm ultra-thin design, USB HID plug-and-play, and wide system compatibility from -20°C to +70°C. Industrial HMI & Control PanelsInteractive Kiosks & Self-ServiceDigital Signage & Retail Displays Standard PCAP Touch Film delivers cost-effective, transparent multi-touch capability for 7”–110” displays, enabling frameless interactive upgrades for kiosks, signage, and industrial controls.

Sleek all-in-one touch computer with flat glass front and aluminum body for industrial or commercial use.

04 Touch All-in-One / Touch Terminal 10.1”–65” PCAP touch display up to 1080p, Intel Celeron/i3/i5 or Android, 4–16GB RAM, 64–512GB SSD, rich I/O, VESA/panel mount, IP54/IP65 front protection. Interactive Kiosks & Self-ServiceOutdoor & Rugged Touch DisplaysIndustrial HMI & Control Panels Touch All-in-One / Touch Terminal combines display, computing, and touch in one rugged enclosure, designed for industrial control, self-service, and commercial interactive applications.
