ITFF-32

ITFF-32

ITFF-32 32" projected capacitive touch foil for embedded displays and interactive product development. 10-point touch, easy lamination on glass or acrylic. Gerteise.

Reference price: USD 79.00

Downloads

32 inch interactive touch foil film

Frequently Asked Questions

Is 32 inch a standard embedded panel size?

Yes. 32-inch LCD panels are widely stocked by industrial display suppliers in both consumer and commercial grades, making the ITFF-32's 699.0×392.8mm active area easy to match with off-the-shelf panels.

Can it be laminated onto acrylic for lightweight products?

Yes. Acrylic lamination cuts weight versus glass — useful for portable kiosks, hanging displays and products where shipping weight drives cost. Touch performance is the same on both substrates.

Does it work with single-board computers (Raspberry Pi, Jetson, etc.)?

Yes. It presents as a standard USB HID touchscreen, so mainstream SBCs and embedded boards recognize it without drivers — a practical choice for interactive product development and MVPs.

What enclosure clearance does the 4.3mm thickness require?

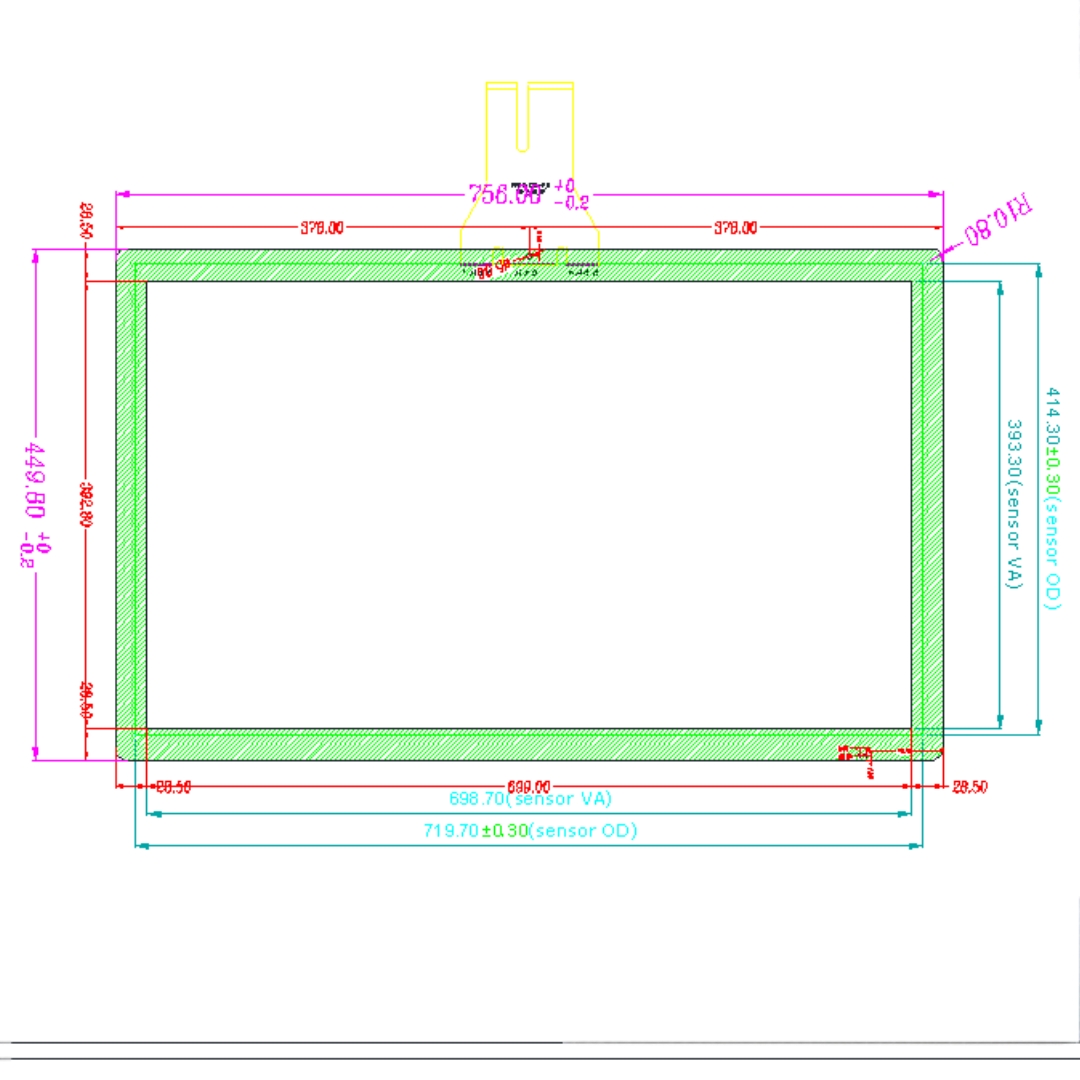

Reserve at least the foil thickness plus tolerance (±0.3mm) plus cable bend radius behind the panel. Gerteise provides dimensional drawings to help mechanical engineers finalize enclosure design.

Can we use the same model across a whole product line?

Yes. Standardized sizes let one foil model serve multiple SKUs that share the same panel size, simplifying BOM management, spare parts and certification across your product family.

Can we evaluate a sample before designing it in?

Yes. Samples are available for mechanical fit and functional evaluation before committing the model to your production design.

Technical parameters

Technical parameters

Product structureG+G .
AV dimension description32inch .
V.A. Size699.0*392.8mm(±0.3mm) .
Total Thickness4.3mm (±0.3mm) .
Outline Dimension756.0*449.8mm(-0.3mm) .
O.D. FilletR10.8mm(±0.3mm)×4 .
Coverlens Thickness3.0mm(±0.1mm) .
ITO Glass Size719.7*414.3mm(±0.3mm) .
ITO Glass Thickness1.1mm(±0.05mm) .
Number of ChannelsRX78*TX44 .
Support Contact10 .
Interface formUSB .
Work voltage5V .
Touch TechnologyPCAP .
Operating Temperature-20-60℃ .
Operating Humidity20%RH-90%RH .
Transparency≥85% .
Haze≤3% .
Surface hardness6H .
