ITFF-24
ITFF-24 24" projected capacitive touch foil for glass, acrylic and display lamination. 10-point multi-touch, high light transmittance. For digital signage and interactive walls. Gerteise.
Reference price: USD 43.00
Downloads
Frequently Asked Questions
Glass or acrylic — which should I choose for my signage project?
Glass offers better scratch and UV resistance for long-term installations; acrylic is lighter, more impact-safe and easier to fabricate in large shapes. The ITFF-24 laminates onto both, so the choice depends on weight limits, safety codes and budget rather than touch compatibility.
Can ITFF-24 signage be installed outdoors?
The foil itself is laminated inside a sealed glass/acrylic assembly, so outdoor use depends on the enclosure design: the panel stack must be sealed against rain and the display/TV behind it must be rated for outdoor conditions. Indoor and semi-outdoor covered areas are the safest deployment.
Can multiple visitors use the interactive wall at the same time?
Yes — the 10-point multi-touch supports several hands simultaneously, which is what wayfinding walls, museum exhibits and multi-user catalog browsers need. Paired with multi-touch software, it enables side-by-side interaction without conflict.
Does it work with any media player or signage PC?
Any device that accepts a standard USB touchscreen works: Windows signage PCs, Android media boxes, embedded boards and industrial controllers all recognize the ITFF-24 as plug-and-play HID input, with no driver installation.
How is the foil installed — can our signage shop do it in-house?
The foil is laminated to the back of the glass or acrylic panel, typically with adhesive during panel fabrication — the same process shops already use for mounting prints or films. Gerteise provides handling guidance and connector positioning recommendations for first-time integrators.
Can you support multi-city signage rollouts?
Yes. Gerteise supplies volume orders with consistent batch quality and can schedule staged shipments to multiple installation sites. Share your rollout cities, quantities per site and timeline for a supply plan.
Technical parameters
Technical parameters

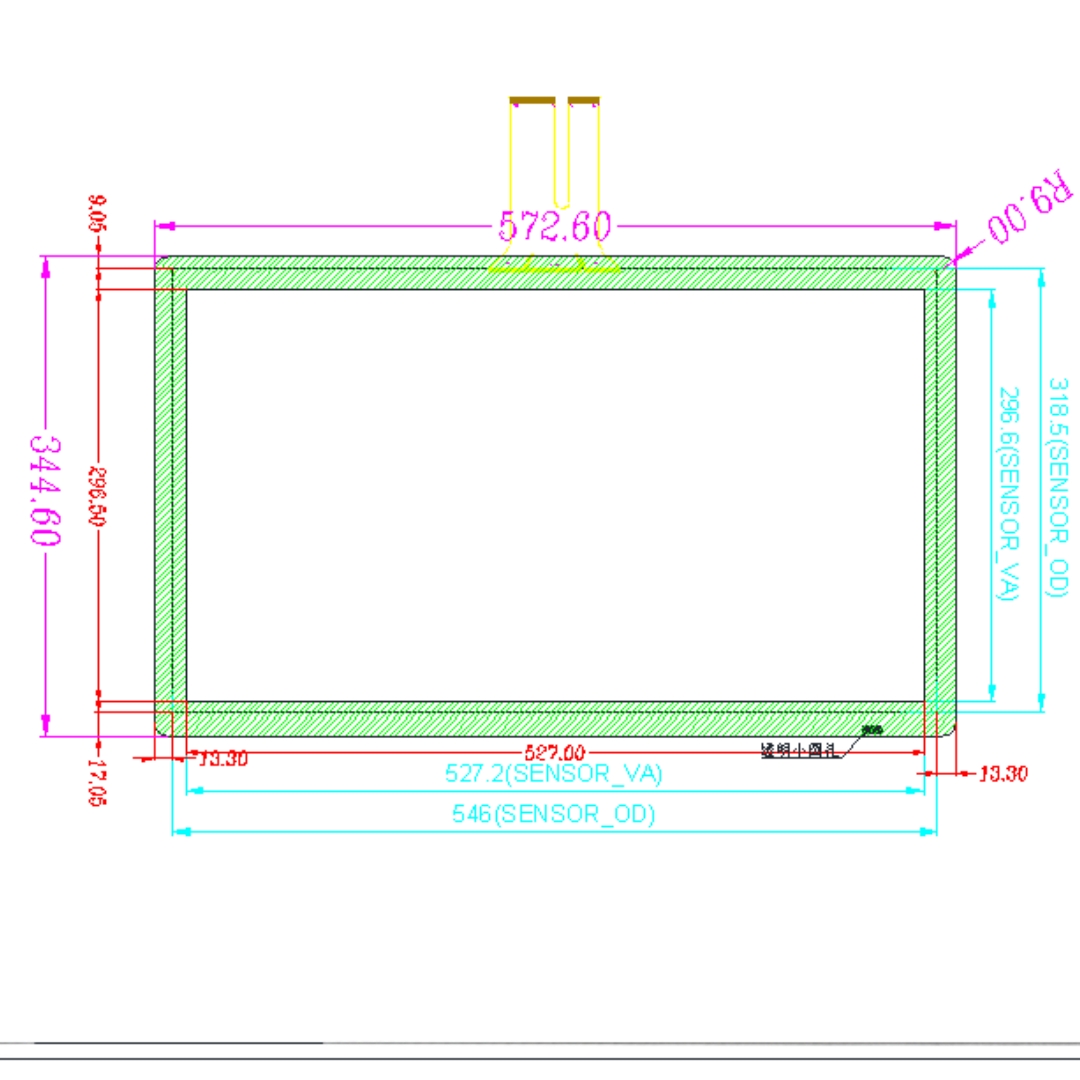

| Product structure | G+G . |
|---|---|
| AV dimension description | 23.8inch . |
| V.A. Size | 527*296.5mm(±0.3mm) . |
| Total Thickness | 2.9mm (±0.3mm) . |
| Outline Dimension | 572.6*344.6mm(-0.3mm) . |
| O.D. Fillet | R9mm(±0.3mm)×4 . |
| Coverlens Thickness | 2.0mm(±0.1mm) . |
| ITO Glass Size | 546*318.5mm(±0.3mm) . |
| ITO Glass Thickness | 0.7mm(±0.05mm) . |
| Touch Technology | PCAP . |
| Number of Channels | RX60*TX34 . |
| Support Contact | 10 . |
| Interface form | USB . |
| Work voltage | 5V . |
| Operating Temperature | -20-60℃ . |
| Operating Humidity | 20%RH-90%RH . |
| Transparency | ≥85% . |
| Haze | ≤3% . |
| Surface hardness | Surface hardness 6H(Apply a force of 500g.) . |
