ITFF-43
ITFF-43 43" thin transparent touch foil for large displays and interactive installations. Transforms glass into responsive surfaces. 10-point multi-touch, USB. Gerteise.
Reference price: USD 90.00
Downloads
Frequently Asked Questions
Where is 43 inch typically deployed?
Meeting rooms, hotel lobbies, exhibition booths, museums and retail showrooms. 43" is large enough for group viewing while still fitting standard commercial display mounts and furniture.
Can it turn a glass partition into a touch interface without a display?
Yes. Combined with a rear projector or transparent OLED, the foil creates interactive glass partitions and showcase windows — the "touch layer" is invisible when idle.
How should large-format foils be handled during installation?
Handle flat, avoid creasing the tail cable area, and laminate in a clean, dust-free environment. Gerteise provides handling guidance with the specification sheet for installation teams.
Does touch response stay uniform across the whole 43-inch surface?
PCAP technology provides consistent detection across the entire active area, so corner touches register as reliably as center touches — important for wayfinding and multi-user exhibit interfaces.
Does it match standard 43-inch commercial TVs?
Yes. 43" is a standard commercial display size from major brands, so the foil's active area pairs with off-the-shelf commercial TVs for quick retrofit projects.
Can Gerteise support exhibition deadlines with scheduled shipments?
Yes. Share your installation dates and Gerteise will coordinate production and staged shipping so foils arrive before installation windows.
Technical parameters
Technical parameters
| Product structure | G+G . |
|---|---|
| AV dimension description | 43inch . |

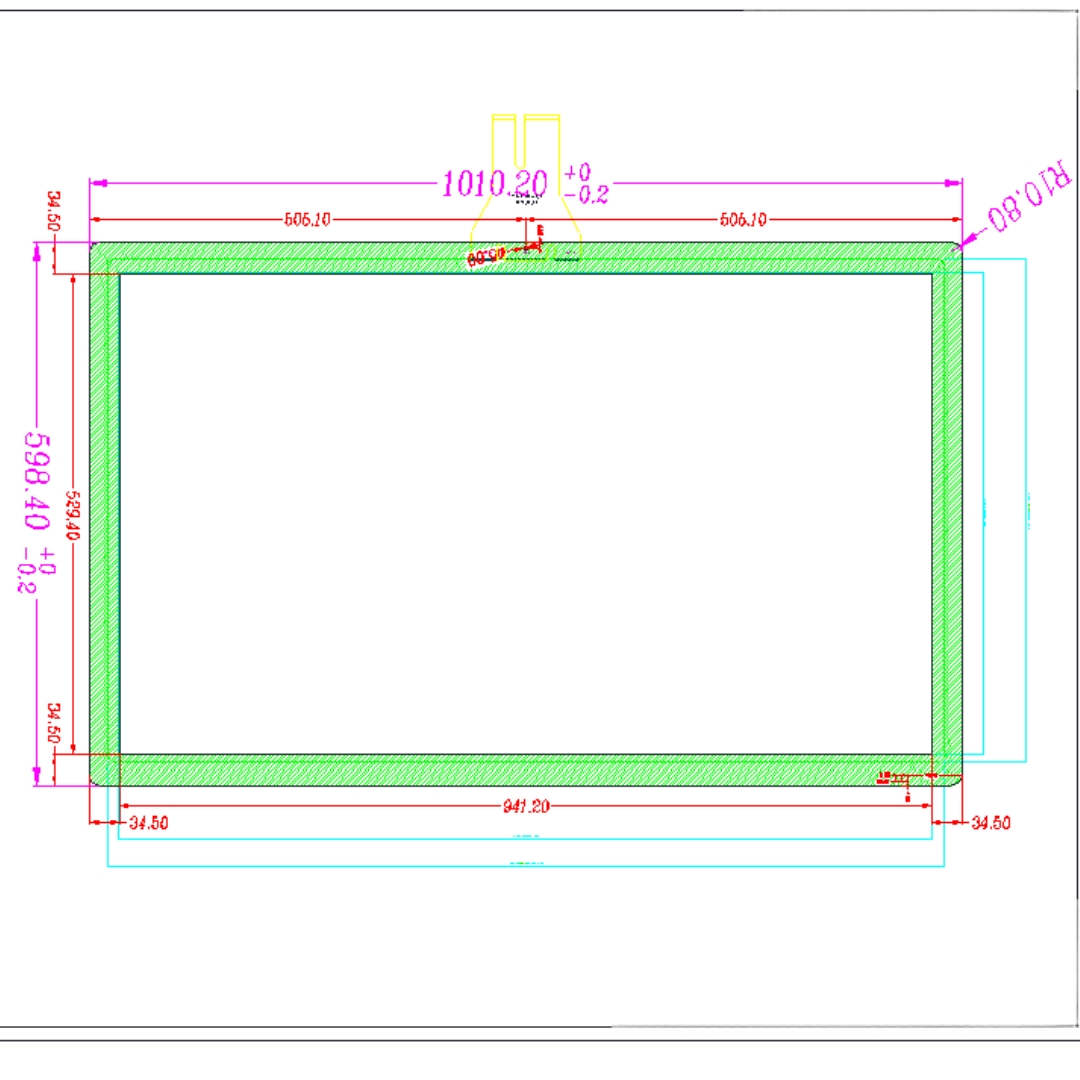

| V.A. Size | 941.2*529.4mm(±0.3mm) . |
| Total Thickness | 4.3mm (±0.3mm) . |
| Outline Dimension | 1010.2*598.4mm(-0.3mm) . |
| O.D. Fillet | R10.8mm(±0.3mm)×4 . |
| Coverlens Thickness | 3.0mm(±0.1mm) . |
| ITO Glass Size | 968.37*554.61mm(±0.3mm) . |
| ITO Glass Thickness | 1.1mm(±0.05mm) . |
| Touch Technology | PCAP . |
| Number of Channels | RX78*TX44 . |
| Operating Temperature | -20-60℃ . |
| Operating Humidity | 20%RH-90%RH . |
| Work voltage | 5V . |
| Support Contact | 10 . |
| Interface form | USB . |
| Transparency | ≥85% . |
| Haze | ≤3% . |
| Surface hardness | 6H . |
