ITFF-18

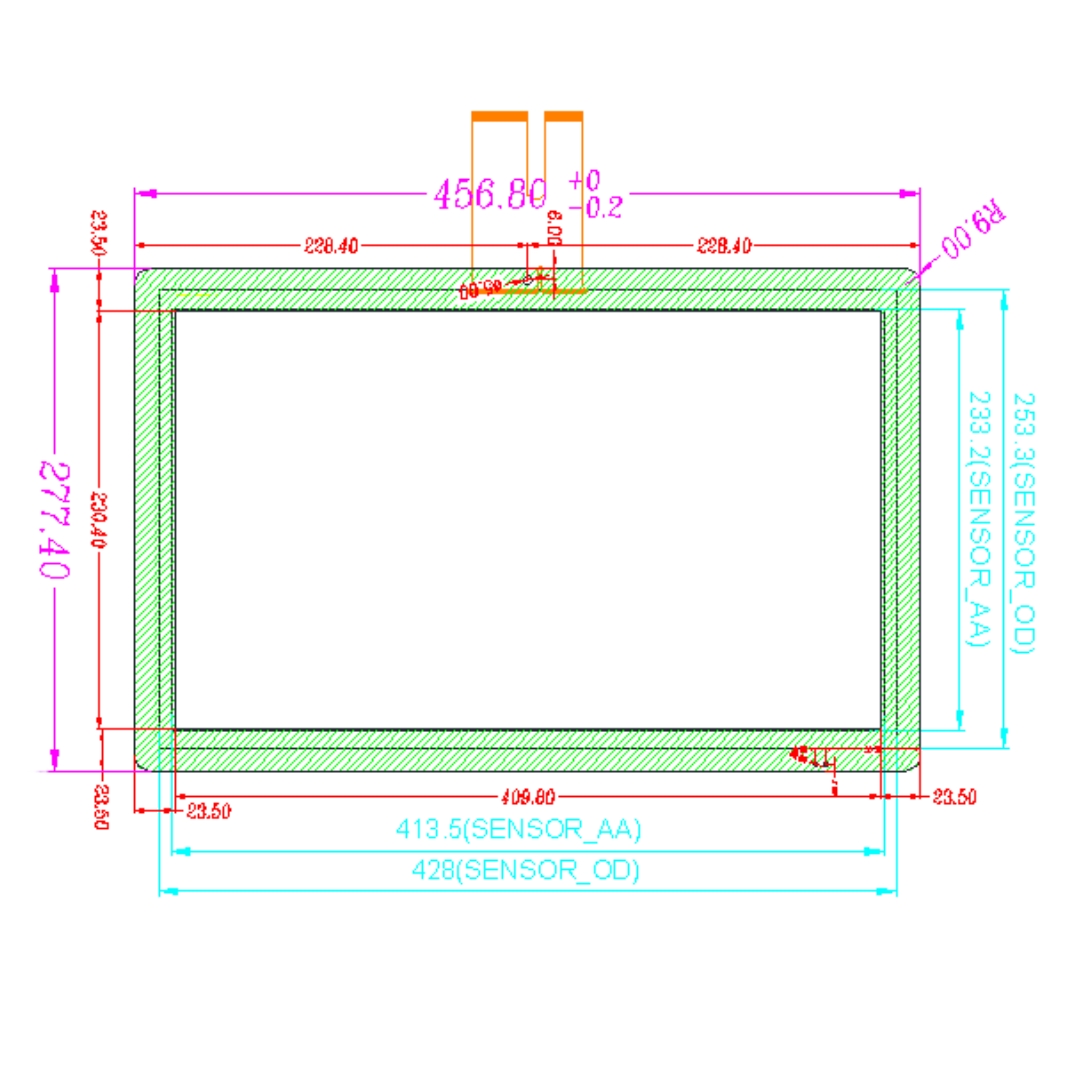

The ITFF-18 is an 18.5-inch projected capacitive (PCAP) touch foil film from Gerteise. Measuring 409.8×230.4mm with 2.9mm total thickness, ≥85% transparency and 10-point multi-touch over a standard USB interface, it adds touch functionality to existing displays and OEM products.

Yes, that is its core design purpose. The foil is laminated onto the back of an existing LCD panel — no need to replace the original display, structure or electronics. This makes it a cost-effective retrofit path for kiosks, industrial panels and commercial displays.

Minimal impact. The ITFF-18 offers ≥85% transparency, so screen content remains clear and bright after installation. Because it mounts behind the display surface rather than on top, there is no visible air gap, glare layer or parallax that external touch frames typically introduce.

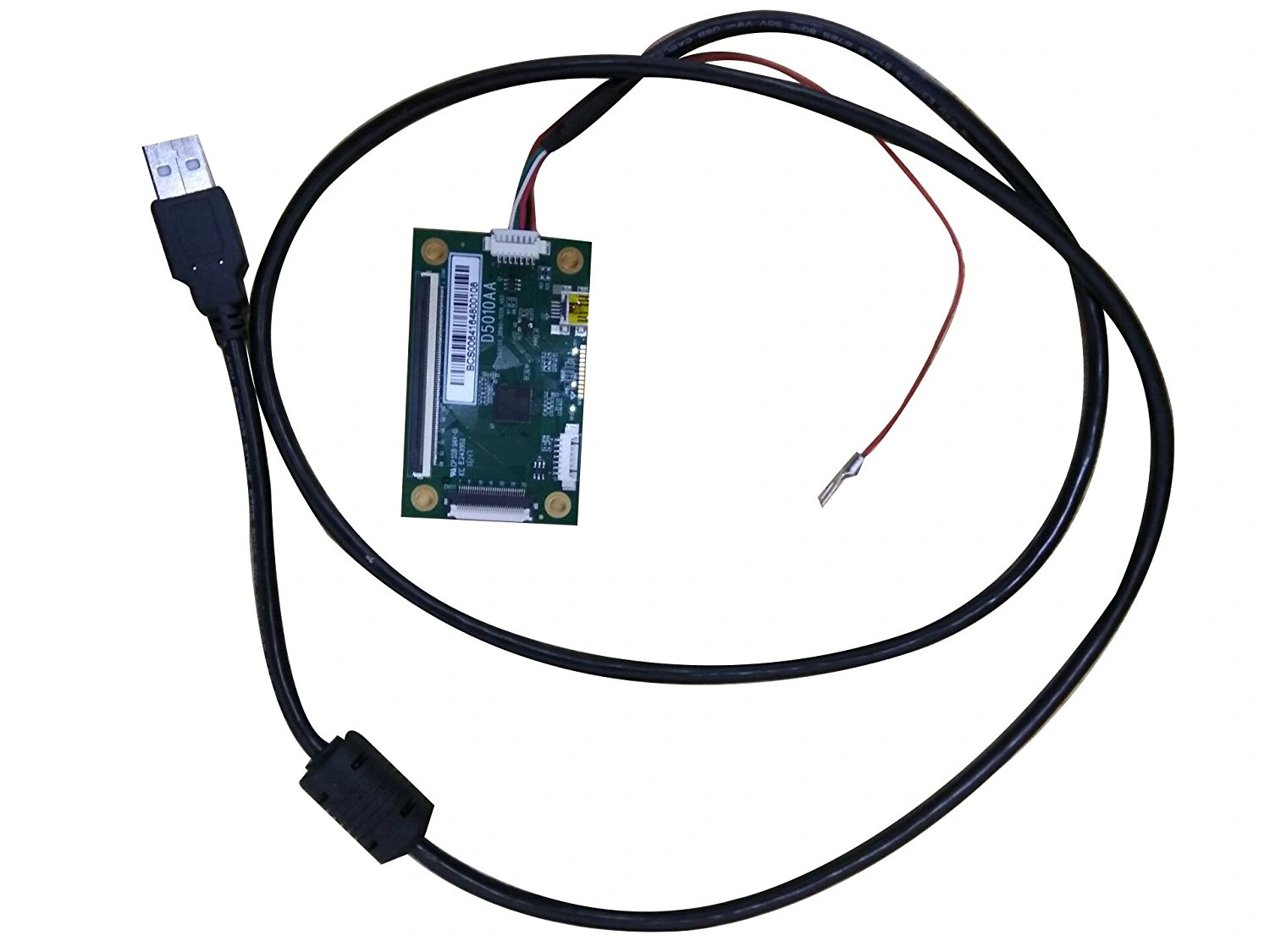

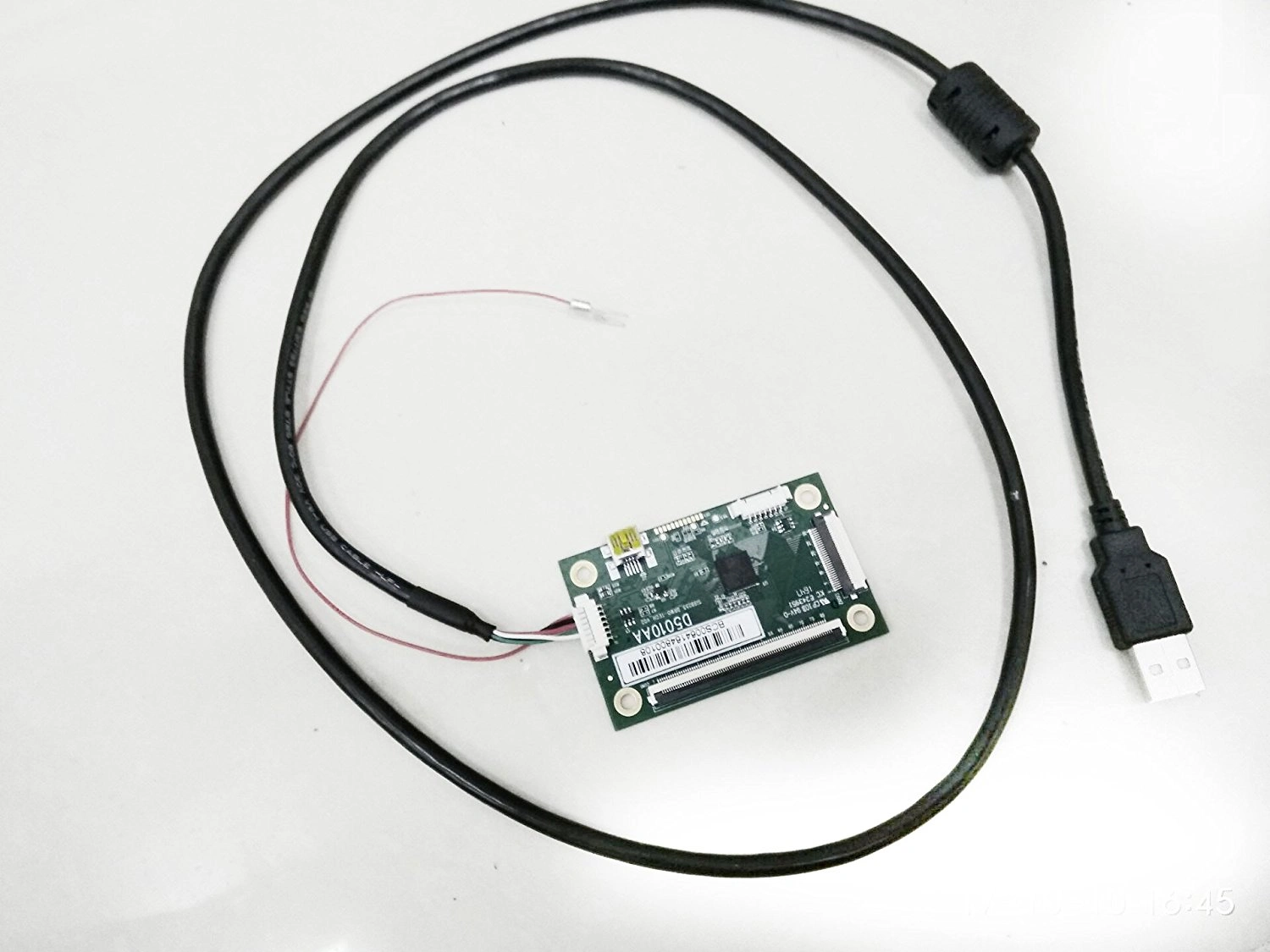

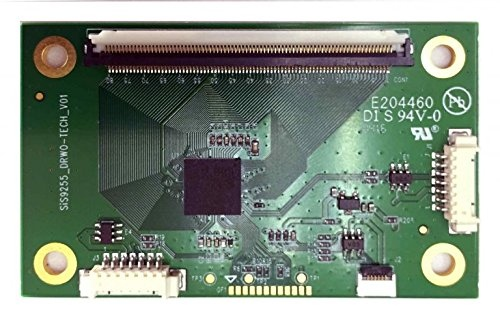

Yes. The ITFF-18 uses a standard USB HID touch interface, so it works plug-and-play on mainstream operating systems such as Windows, Android and Linux, without dedicated drivers. It integrates with kiosks, industrial PCs and embedded boards like a standard touchscreen.

Yes. Gerteise supplies the ITFF series in standard sizes from 18 to 65 inches and accepts custom sizes, prototype samples and volume orders. Contact us with your display dimensions and we will confirm feasibility, tooling and lead time.

The foil is only 2.9mm thick (±0.3mm) and is installed between the display back and the rear enclosure or mounting structure. Its slim profile suits space-constrained products such as all-in-one kiosks, industrial HMI panels and smart retail displays.

The ITFF-18 specification sheet (PDF) with full parameters and dimensional drawings is available in the Downloads section on this page. For CAD drawings, sample requests or integration support, email info@gerteise.com.
